100mm
220mm
290mm
400mm
Rectangle

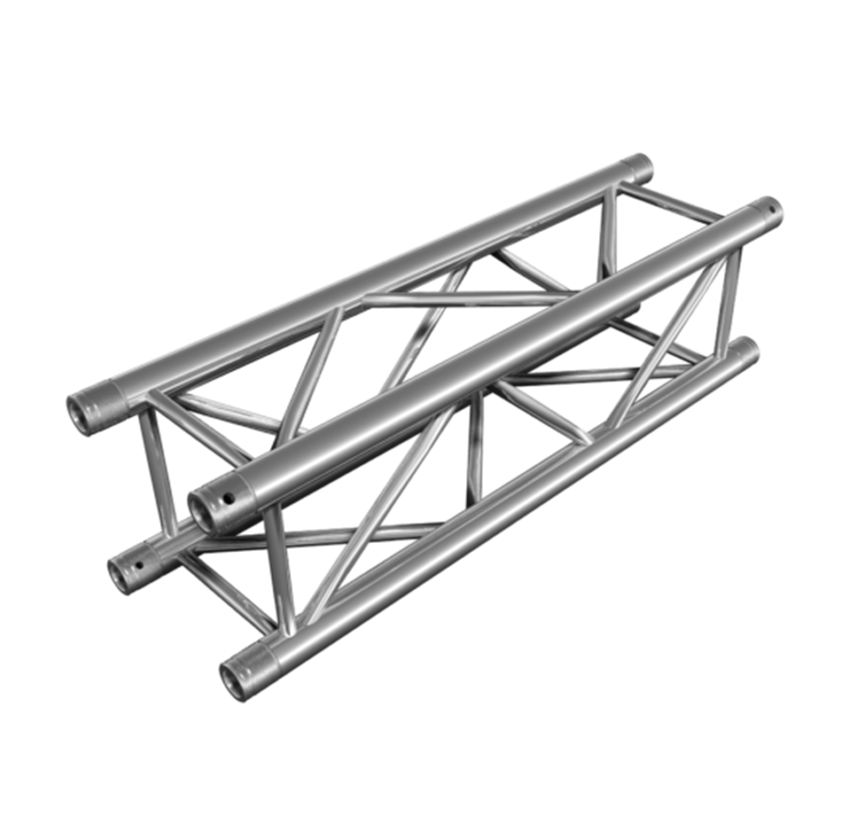

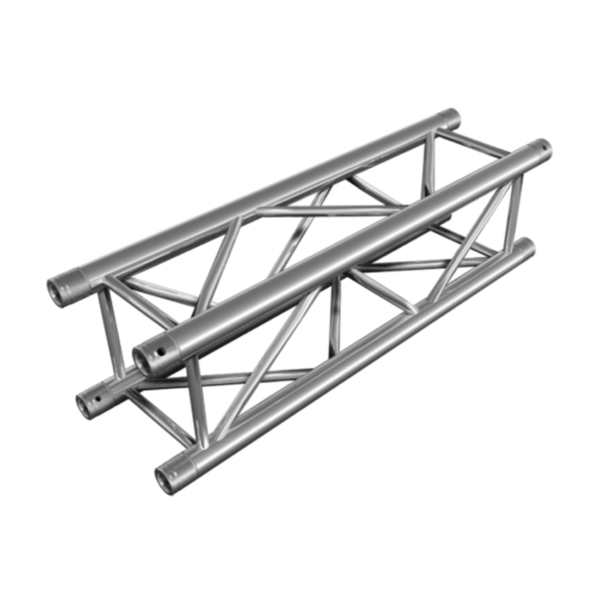

TOTEM
| DIMENSION | 290 x 290 mm | |
|---|---|---|
| TUBE PORTEUR | 50×3 mm – 6082 T6 | |
| CROISILLON | 20×2 mm – 6082 T6 | |
| ASSEMBLAGE | PAR MANCHONS CONIQUES | |
| CODE | HT34-50 | HT34-100 | HT34-150 | HT34-200 | HT34-250 | HT34-300 | HT34-400 |
|---|---|---|---|---|---|---|---|
| LONGUEURS | 0.5 m | 1 m | 1.5 m | 2 m | 2.5 m | 3 m | 4 m |
| POIDS | 4.4 kg | 7.4 kg | 10.5 kg | 13.7 KG | 16.8 kg | 19.9 kg | 26.2 kg |
| Longeurs | 2 m | 4 m | 6 m | 8 m | 10 m | 12 m |
|---|---|---|---|---|---|---|
| Distrib (kg/m) | 1420 | 707 | 344 | 193 | 121 | 82 |
| Déflexion (mm) | 1.7 | 13.3 | 33.2 | 59.8 | 93.9 | 134.8 |
| Charge ponctuelle (kg) | 2840 | 1544 | 1033 | 771 | 607 | 491 |
| Déflexion (mm) | 2.7 | 11.7 | 26.7 | 48.3 | 76.2 | 110.1 |
