100mm
220mm
290mm
400mm
Rectangle

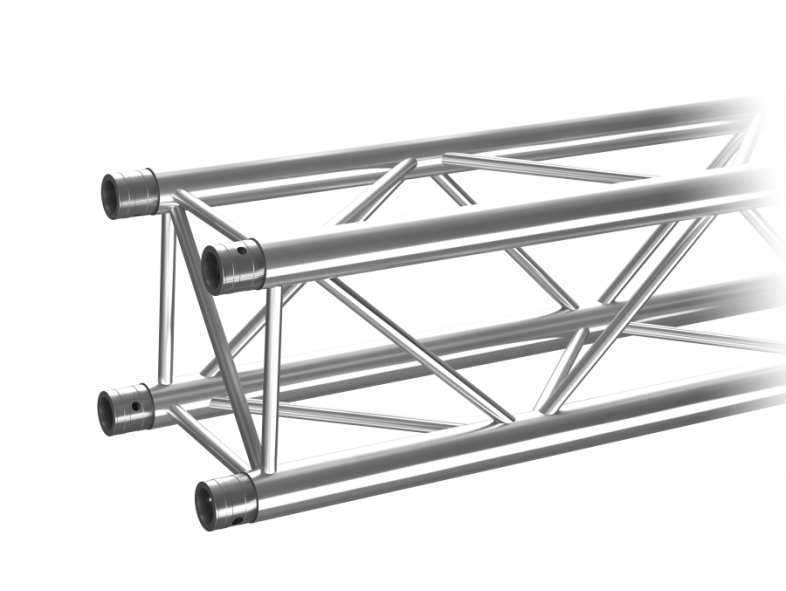

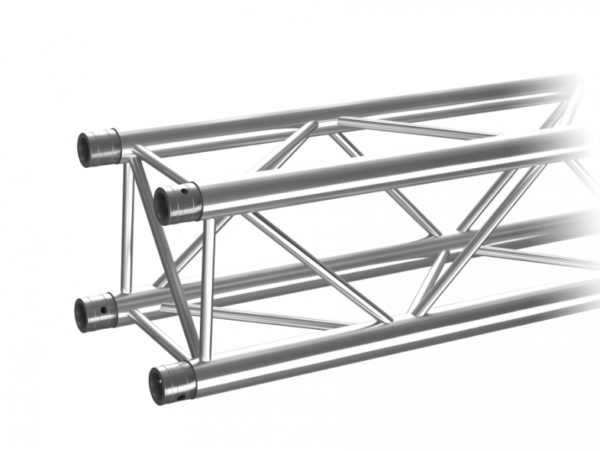

TOTEM
| DIMENSION | 290 x 290 mm | |
|---|---|---|
| TUBE PORTEUR | 50×2 mm – 6082 T6 | |
| CROISILLON | 16×2 mm – 6082 T6 | |
| ASSEMBLAGE | PAR MANCHONS CONIQUES | |
| CODE | PT34-50 | PT34-100 | PT34-150 | PT34-200 | PT34-250 | PT34-300 | PT34-400 |
|---|---|---|---|---|---|---|---|
| LONGUEURS | 0.5 m | 1 m | 1.5 m | 2 m | 2.5 m | 3 m | 4 m |
| POIDS | 3.4 kg | 5.7 kg | 7.9 kg | 10.1 KG | 12.5 kg | 14.5 kg | 18.9 kg |
| Longeurs | 2 m | 4 m | 6 m | 8 m | 10 m | 12 m |
|---|---|---|---|---|---|---|
| Distrib (kg/m) | 785 | 390 | 229 | 130 | 81 | 53 |
| Déflexion (mm) | 1.4 | 10.8 | 32.5 | 59.3 | 92.5 | 130.3 |
| Charge ponctuelle (kg) | 1570 | 961 | 688 | 520 | 406 | 321 |
| Déflexion (mm) | 2.2 | 10.7 | 26.2 | 47.9 | 75.1 | 106.6 |
